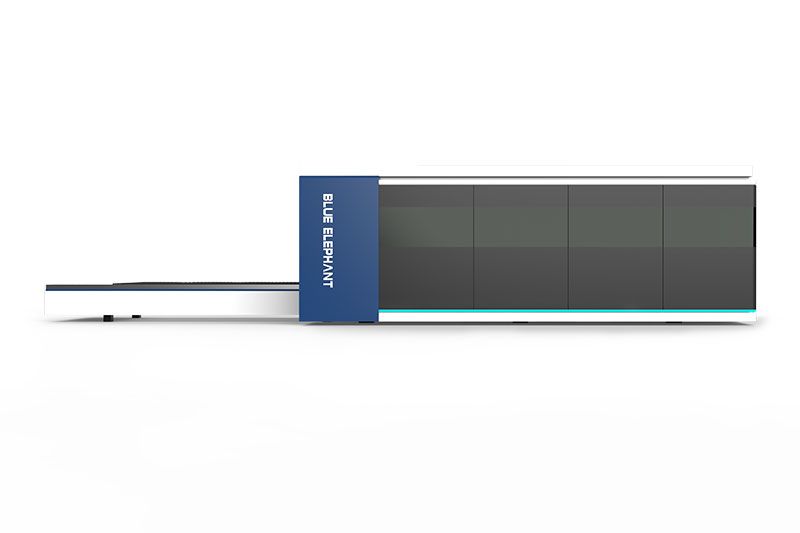

Fully Enclosure Metal Laser Cutting Machine with Exchange Worktable
Fully enclosure fiber laser source metal laser cutting machine with parallel shuttle exchange worktable, it is designed for metal cutting applications within a demanding industrial production environment. The machine is fully covered by the robust enclosure while the exhaust system ensures safe and pollution free operations.Intelligent monitoring system to reduce accident rate
Features
- 1. It adopts top world fiber lasers generator, stable performance, key parts can reach 100,000 hours.
- 2. Parallel Shuttle Exchange Worktable, improve production efficiency,cutting speed is 2-3 times than same power CO2 laser cutting machine.
- 3. Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
- 4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
- 5. Low Maintenance,Easy Operations
Laser CNC Machines Video
Parameters
| Model | ELECNC-1530S | ELECNC-2040S | ELECNC-2560S |
| Working area (mm) | 1515*3030 | 2020*4040 | 2525*6050 |
| Max. acceleration | 2.0G | 2.0G | 2.0G |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. exchange time | 25S | 25S | 25S |
| Laser power | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW |
| Laser | Multiple options | Multiple options | Multiple options |
| Focusing method | Auto/manual | Auto/manual | Auto/manual |
| Machine bed | Sheet welded bed | Sheet welded bed | Sheet welded bed |
| Servo motor and driver | YASKAWA/FUJI | YASKAWA/FUJI | YASKAWA/FUJI |
| Reducer | Shimpo | Shimpo | Shimpo |
| Relay | Schneider | Schneider | Schneider |
| Circuit breaker | Schneider | Schneider | Schneider |
Application
Suitable for cutting stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium ect., and has been widely used in advertising, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.
